BG-Power600k is a power supply with temperature control function, which can prevent gel from overheating to damage the sample and reduce the resolution. It can provide the required power for large horizontal electrophoresis and large size vertical electrophoresis.
|

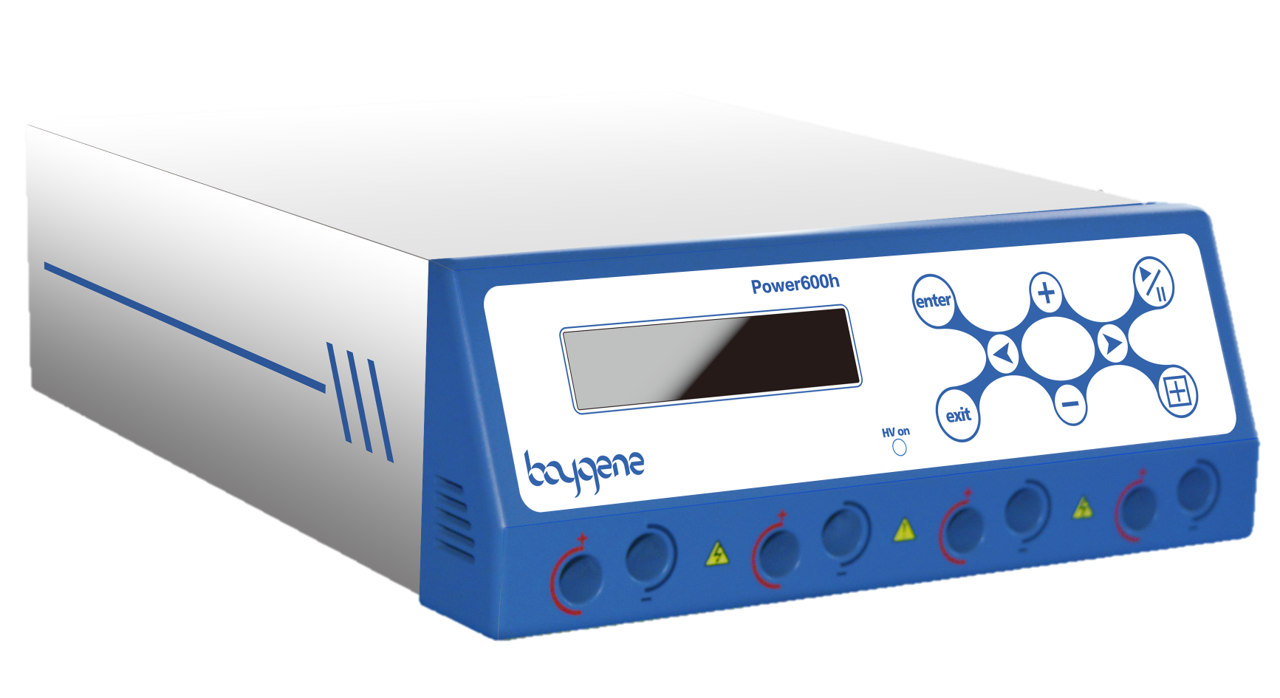

BG-Power600h is a power supply with temperature control function, which can prevent gel from overheating to damage the sample and reduce the resolution. It can provide the required power for large horizontal electrophoresis and large size vertical electrophoresis. Electrophoresis can be achieved by constant voltage, current or power. It can supply the required power for the BayGene's BG-verMINI mini vertical electrophoresis system, BG-sub series horizontal electrophoresis system, BG-verBLOT mini vertical transfer tank and other company's corresponding electrophoresis system. |
|
1. *Temperature control function: ensure that the gel is not overheated; 2. *Automatic match function: Once set the constant value of any one of the voltage, current or power the other two are automatically matched. You needn’t set up all three parameters each time and won’t worry about miss set for the other two once set one constant; 3. *Micro-current state function：At the end of electrophoresis, the microcurrent state starts automatically. It can not only avoid the sample diffusion after the electrophoresis completed without anybody standby, but also prevent the sample from over running; 4. *Pause/resume function; 5. *Storage capacity for up to 12 user-defined methods; 6. *Alarming, automatic shutdown and power automatic recovery to continue the electrophoresis program function: avoid misoperation during experiment in case of blackouts; 7. *Safety features: overvoltage, arc, short circuit, rapid resistance change, no-load and overload monitoring and power leakage protection; 8. *Output terminals: 4 pair recessed banana jacks floating in parallel which can carry several electrophoresis tanks. |
|
Output specifications：voltage:5-600 V；current:1-1000 mA；power:1-300 W Output Resolution：voltage 1 V、current 1 mA、power 1 W LCD screen displays Timer：1～999 min Dimensions (L×W×H)：308×242×100 mm |
