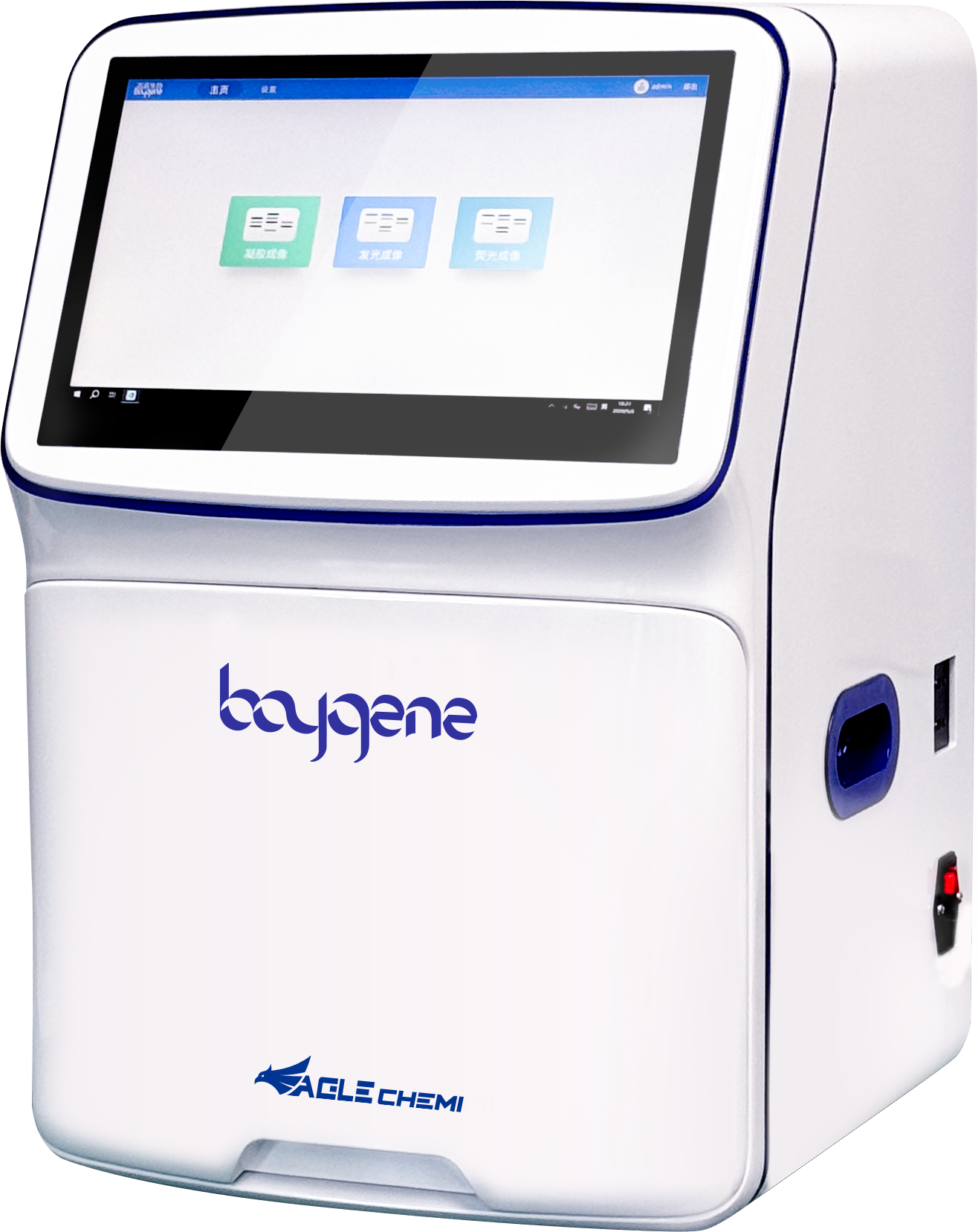

Multifunctional Imaging Analysis System (Eagle Chemi)

Integrated Light Source Modular Design

Eagle Chemi Multi-functional Imaging Analysis System, developed by Gene Group, integrates gel imaging, chemiluminescence and multi-colour fluorescence imaging to meet a variety of needs and can provide customers with precise imaging solutions.

  • Introduction
  • Features
  • Parameters
  • Support

Eagle Chemi multifunctional imaging analysis system adopts a depth-cooled CMOS camera with a large aperture auto-focus lens to enhance imaging quality.


Multi-wavelength integrated LED light source, integrating gel imaging, chemiluminescence, visible fluorescence imaging, and near-infrared fluorescence imaging, meets various needs and can provide customers with accurate imaging solutions.


Modular integrated design, flexible configuration choice, to meet different customer experimental needs.


Intelligent operating system, one-click image capture, light source automatic recognition, intelligent gel cutting, etc.

Integrated LED Light Source

  • Three-wavelength integrated transillumination LED light source with dual-channel epi-illumination UV light source, RGB fluorescent light source, and dual-channel NIR fluorescent light source.

  • Transillumination light source: UV, blue, white light

  • Epi-illumination: UV, white, RGB fluorescence, dual-wavelength near-infrared fluorescence

  • 7-position motorized filter wheel, supporting automatic matching of filter and light source to meet different experiment needs.

High Performance Optical System

  • Adopting a high-resolution scientific research grade camera, advanced cooling noise reduction, and image processing technology can support long exposure up to 60min.

  • High-resolution large aperture motorized focusing lens, precise focusing effect, and high imaging quality can be obtained in different applications.

True Color Reproduction Technology

    With Eagle Chemi’s intelligent imaging system, the combination of true color reproduction technology and automatic image overlay ensures that your pre-stained protein markers appear exactly as they are — what you see is what you get!

Modular and Highly Integrated Design

  • All-in-one design with large 15.6-inch touch screen.

  • Different application modules can be flexibly configured.

  • Different cameras and lenses can be selected according to different experimental needs, customized design for customers.

Intelligent Operating System

  • Supports automatic exposure & focusing, one-click image capture.

  • Sample tray automatic recognition, matching and turning on the corresponding light source immediately.

Dual-layer sample tray design accommodates imaging of membranes of various sizes.

  • Innovative design of foldable gel-cutting filter shield, automatic light source switch on for intelligent gel cutting.


Audit Trail

  • Provides comprehensive, accurate, and traceable lab data support for enterprise customers.

Powerful Analysis Software

  • Supports image cropping, rotation, scaling, brightness and contrast adjustment, pseudo-color, annotation, histogram, merging, etc.

  • Automatic lane, band and edge recognition, and manual band recognition are available also.

  • Molecular weight, concentration, band mobility measurement, absolute and relative quantitative analysis.
