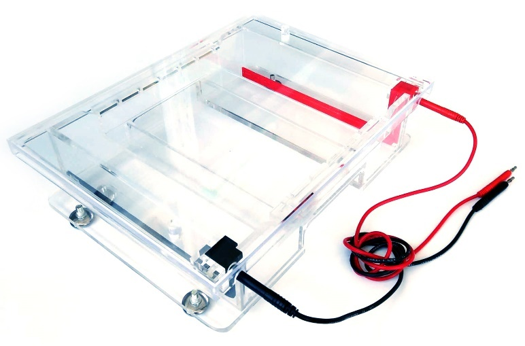

The BG-subMAX high-throughput horizontal electrophoresis system is a large size and most versatile type of horizontal electrophoresis. It is highly suitable for high-throughput sample screening.
|
The BG-subMAX high-throughput horizontal electrophoresis system is a large size and most versatile type of horizontal electrophoresis. It is highly suitable for high-throughput sample screening. And the ultra-long gel tray is also ideal for Southern hybridization, Northern hybridization, RFLP, etc. |
|
1. *High-throughput: up to 306 samples can run at one time(need the optional package), specially developed for high-throughput analysis of multi-samples; 2. Supports multichannel pipettor loading: 26-well (supports 8 and 12-row pipette high-throughput loading), 51-well electrophoresis comb, which greatly facilitates large-scale PCR product analysis; 3. Safe and reliable: automatically power off when the lid is opened; 4. Convenient maintenance: the replaceable electrode heads greatly facilitates subsequent maintenance. |
|
Gel area: 250 × 200 mm (W × L) Comb: 1.0 mm, 26/51well; 1.5 mm, 26/51well Buffer volume: 2500ml Withstand voltage: 200 V, 40 W Recommended power: BG-Power600K, BG-Power600 or BG-Power 300 Dimensions(L × W × H): 394 × 297 × 134 mm Weight: 3.8 kg
|
