> Multifunctional fluorescence & chemiluminescence imaging analysis system (BG-gdsAUTO 730)

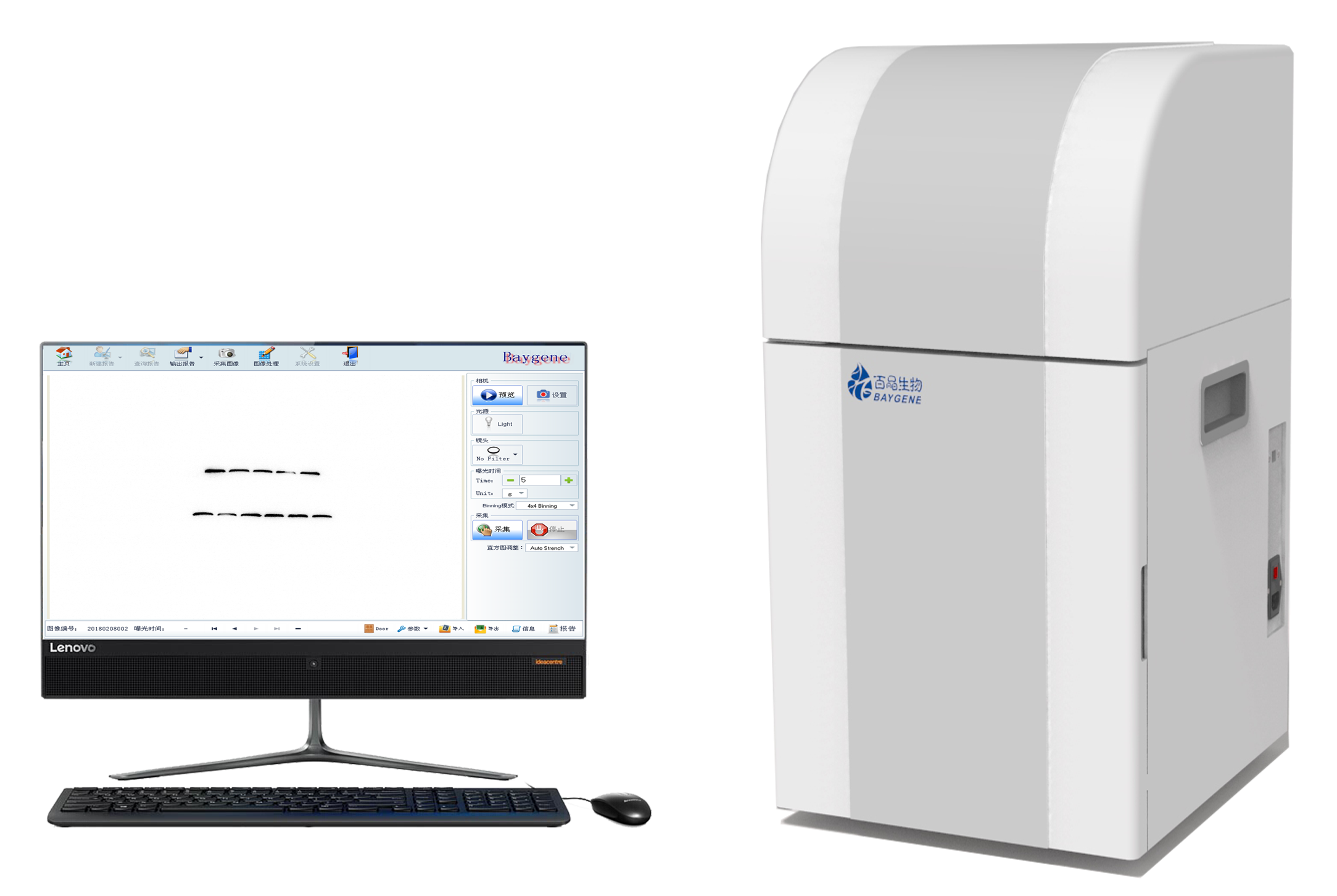

BG-gdsAUTO730 multifunctional fluorescence chemiluminescence imaging system is suitable for various applications such as multi-color fluorescence imaging analysis, chemiluminescence imaging analysis, nuclear acid gel imaging analysis and protein gel imaging analysis.
|
BG-gdsAUTO730 multifunctional fluorescence chemiluminescence imaging system is suitable for various applications such as multi-color fluorescence imaging analysis, chemiluminescence imaging analysis, nuclear acid gel imaging analysis and protein gel imaging analysis. The first class high-resolution low-illumination digital refrigeration camera ensure image quality; The large-aperture, high-throughput, fixed-focus lenses greatly improve detection sensitivity to detect weak signals; The deep-cooled CCD with low background noise improve image quality even in case of long exposure time. 6-bit electric filter wheel to meet a variety of experimental needs. |
|
1. **Integrated design of multi-color fluorescence such as Cy2, Cy3, Cy5 imaging, chemiluminescence imaging and ordinary gel imaging analysis, truly multi-purpose machine, saving experimental space and easy to use; 2. *No dark room required: Instead of dark room exposure, no dark room is wasted, no tedious fumbling exposure steps, no contact with toxic chemicals; 3. *High sensitivity: scientific research CCD, high quantum efficiency, high detection sensitivity, cooling CCD imaging system reduce background noise; 4. *Large aperture lens: F0.8, collect more light to improve detection sensitivity; 5. *Automaitic exposure and estimating the exposure time in real time; 6. *Multiple imaging modes: single/ series/ manual; 7. *Wide dynamic range: detect weak bands alongside strong bands. Application Fluorescence detection such as Cy2, Cy3, Cy5; Chemiluminescence imaging of Western blot membrane with various luminous substrates such as Western Lightning, ECL, ECL plus, CDP Star, SuperSignal, CSPD, LumiGlo; DNA / RNA gel imaging; Protein gels imaging. |
|
Camera: high resolution low illumination digital refrigeration camera Resolution: 2750×2200(6.05million) Pixel size：4.54μm × 4.54μm A/D: 16bit Binning：1×1，2×2， 4×4，6×6， 8×8，12×12， 24×24 CCD photo sensitive chip：SONY ICX 695 CCD dark current: < 0.0005e-/pixel/sec @-40℃ Quantum efficiency: >75% CCD cooling method: Semiconductor refrigeration CCD cooling temperature: -55°C Lens: F/0.8 fixed focus lens Zoom: compatible with sample thickness of 0.1-10mm Dynamic range: >4.5 orders of magnitude Six-position motorized filter wheel: equipped with 535nm, 590nm, 605nm, 700nm , 840nm(optional) filters can also be customized Epifluorescence on both sides: red 625nm, green 525nm, blue 470nm，740nm(optional) Transmission light source: 302nm Reflected light source: UV254nm, UV365nm (optional) White light on both sides: 12v LED light source on both sides Equipped with professional UV to white light board UV transmission area: 20 × 20cm UV to white light plate transmission area: 26 × 21cm UV reflection area: 15cm × 5cm Chemiluminescence imaging area: 15 × 18cm Dimensions(L × W × H): 405×440×680mm Software: Baygene professional camera software, switch between Chinese and English, easy to operate, free upgrade for life
|
