> Multifunctional Chemiluminescence Imaging Analysis System (BG-gdsAUTO720)

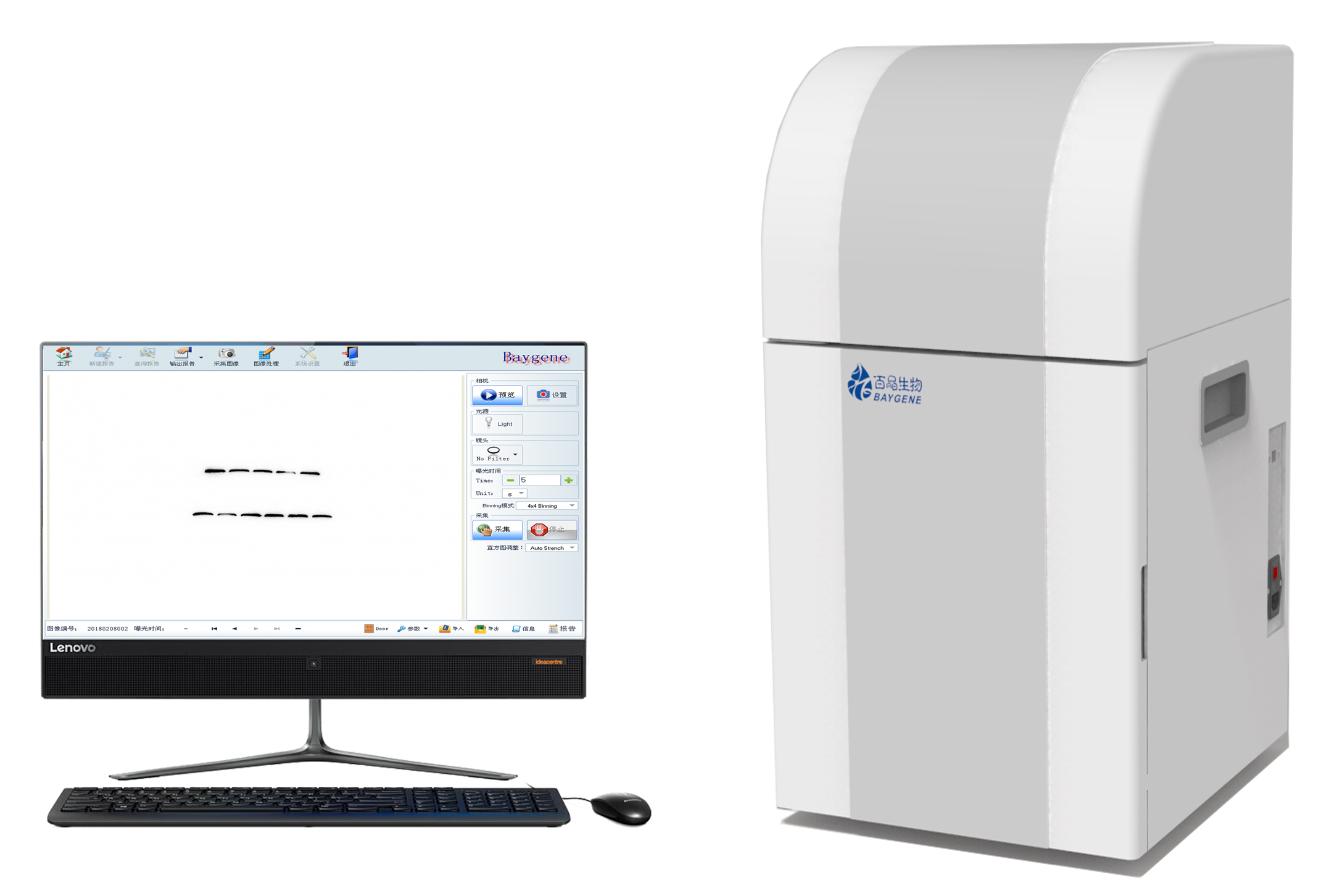

BG-gdsAUTO 720 multifunctional chemiluminescence imaging analysis system is suitable for various applications such as chemiluminescence imaging analysis, nuclear acid gel imaging analysis and protein gel imaging analysis.
|
BG-gdsAUTO 720 multifunctional chemiluminescence imaging analysis system is suitable for various applications such as chemiluminescence imaging analysis, nuclear acid gel imaging analysis and protein gel imaging analysis. The first class high-resolution low-illumination digital refrigeration camera ensure image quality; The large-aperture, high-throughput, fixed-focus lenses greatly improve detection sensitivity to detect weak signals; The deep-cooled CCD with low background noise improve image quality even in case of long exposure time. 6-bit electric filter wheel to meet a variety of experimental needs. |
|
1. *Integrated design of chemiluminescence and ordinary gel imaging, truly multi-purpose machine, saving experimental space and easy to use; 2. *No dark room required: Instead of dark room exposure, no dark room is wasted, no tedious fumbling exposure steps, no contact with toxic chemicals; 3. *High sensitivity: scientific research CCD, high quantum efficiency, high detection sensitivity, cooling CCD imaging system reduce background noise; 4. *Large aperture lens: F0.8, collect more light to improve detection sensitivity; 5. *Automaitic exposure and estimating the exposure time in real time; 6. *Multiple imaging modes: single/ series/ manual; 7. *Wide dynamic range: can detect weak bands alongside strong bands. Application Chemiluminescence imaging of Western blot membrane with various luminous substrates such as Western Lightning, ECL, ECL plus, CDP Star, SuperSignal, CSPD, LumiGlo; DNA / RNA gel imaging; Protein gels imaging. |
|
Camera: high resolution low illumination digital refrigeration camera Resolution: 2750×2200(6.05million) Pixel size：4.54μm × 4.54μm A/D: 16bit Binning：1×1，2×2， 4×4，6×6， 8×8，12×12， 24×24 CCD photo sensitive chip：SONY ICX 695 CCD dark current: < 0.0005e-/pixel/sec @-40℃ Quantum efficiency: >75% CCD cooling method: Semiconductor refrigeration CCD cooling temperature: -55°C Lens: F/0.8 fixed focus lens Dynamic range: >4.5 orders of magnitude Six-position motorized filter wheel: standard 590nm filter Transmission light source: 302nm Reflected light source: UV254nm, UV365nm (optional) White light on both sides: 12v LED light source on both sides Equipped with professional UV to white light board UV transmission area: 20 × 20cm UV to white light plate transmission area: 26 × 21cm UV reflection area: 15cm × 5cm Chemiluminescence imaging area: 15 × 18cm Dimensions(L × W × H): 405 × 440 × 680mm Software: Baygene professional camera software, switch between Chinese and English, easy to operate, free upgrade for life |
