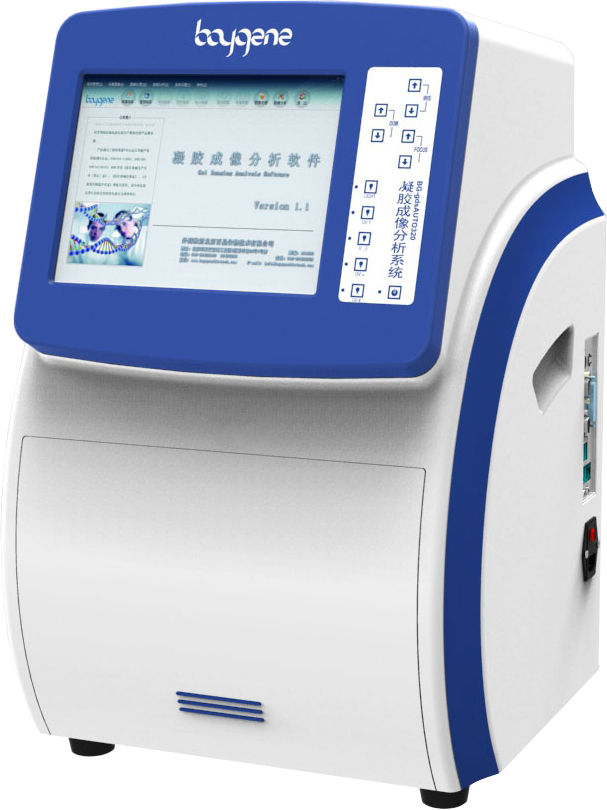

BG-gdsAUTO320 is an integrated gel imaging analysis system with built-in computer and large touch screen 12.1, which has small foot print. The high-resolution camera guarantees imaging results.
|
BG-gdsAUTO320 is an integrated gel imaging analysis system with built-in computer and large touch screen 12.1, which has small foot print. The high-resolution camera guarantees imaging results. It provides gel cutting device to protect user from UV. The full-featured software integrates image capture, image processing, data analysis, user and report management into one, which makes easy and efficient for DNA / RNA gel analysis, protein gel analysis, dot-blot analysis, microtiter plate analysis, etc. |
|
1. Built-in computer with large touch screen 12.1”; 2. Stand alone system with small foot print; 3. High-resolution camera; 4. Motorized zoom lens; 5. Easy to use gel-cutting module; 6. UV light box with strong and even intensity; 7. Fully featured software. Application DNA / RNA gel imaging and analysis; Protein gel imaging and analysis; Dot-blot electrophoresis imaging and analysis; Colony plate imaging and analysis; Measurement area / density; Blot hybridization membrane imaging and analysis; Microplate imaging and analysis |
|
Baygene darkroom (stand alone unit): built-in computer (energy efficient) 12.1" LCD touch screen Camera: CCD Camera 1.31 megapixels resolution in 2592 x 1944 format Lens (Motor Driven) :8-48mm, f/1.2. zoom Transilluminating UV light source :302nm, 8 x 8W Detect Filter: 590nm Highly integrated design: automatic image capture; camera and zoom settings can be adjusted using the touchscreen Image capture : Real-time, auto-focus and auto-exposure (camera and zoom ) Image analysis: Pre-installed Baygene software for image capture, image process, data analysis report management Image formats: JPG, TIFF, PNG, BMP Image storage: USB, hard disk and network capabilities Computer (built-in): Check latest specifications before ordering, wireless keyboard & mouse included Ports and connectors: WAN port, USB port, VGA, etc Footprint (W x H x D) :450mm x 395mm x 670mm Weight :22Kg Power:220V, 50Hz |
