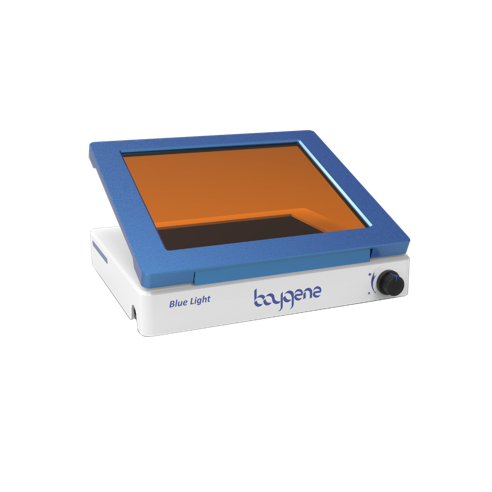

The BG-Vtrans520s blue light transilluminator is easy to observe and cut the DNA/RNA gel with multiple safe dyes.It can also be used in combination with the BG-gdsAUTO520 gel imaging analysis system.
|
The BG-Vtrans520s blue light transilluminator is easy to observe and cut the DNA/RNA gel with multiple safe dyes. The professional blue light source design can efficiently excite most of the safe fluorescent dyes on the market, ensuring the safety of the operator and the experimental environment. It can also be used in combination with the BG-gdsAUTO520 gel imaging analysis system. |
|
1. Safety: Use blue light source and safety dyes to avoid the damage caused by EB and UV gel imaging system; 2. Continuously adjustable light source intensity: Equipped with an adjustable light source knob, you can choose the appropriate light intensity according to the sample concentration, increase the imaging linear range, and avoid overexposed or weak sample signals; 3. Uniform illumination: 360 LED lights are evenly distributed at the bottom for even illumiation; 4. Suitable for a variety of sensitive and safe fluorescent dyes: The maximum absorption peak of many fluorescent dyes is blue-green visible light with a wavelength of 400-500nm, such as GeneFinder TM, SYBR Green, Gelstar, SYPRO Orange, green fluorescent protein Safety dyes. |
|
Light source: 470nm blue light transmission light source Light intensity: continuously adjustable Dimensions(L × W × H): 275 × 240 × 69 mm
|
